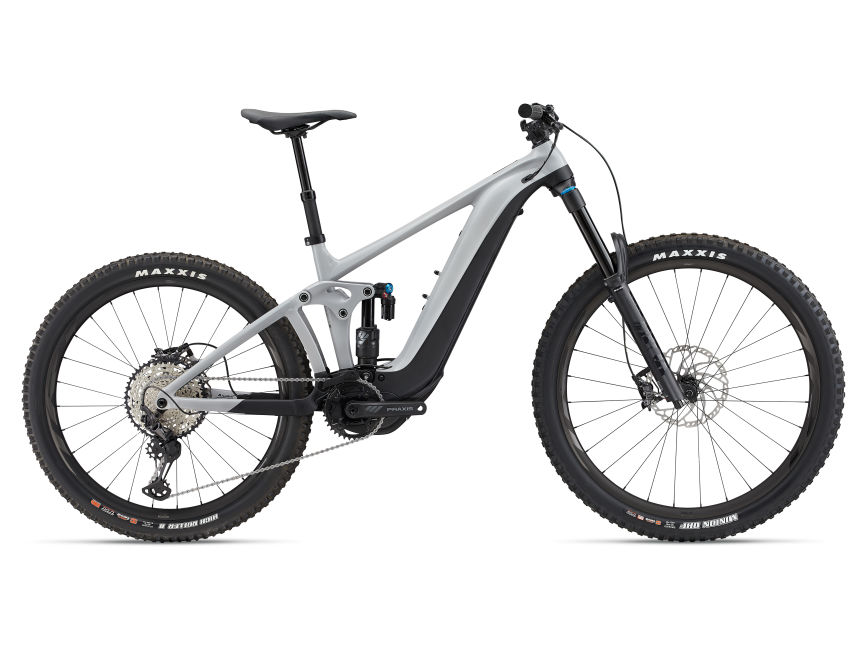

Giant Reign E+ 1 S

6.799,00€

Tuotetunnus (SKU): 22-GIANT-REIGN E+ 1-S Osasto: Avainsanat tuotteelle , ,

Varasto loppu

Kuvaus



A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.

ENERGYPAK SMART 625 / SYNCDRIVE PRO

  • Range
  • Extreme: 60 KM
  • Good: 120 KM
  • Ideal: 190 KM
Motor SyncDrive Pro, 85Nm, powered by Yamaha

The new motor is co-developed with Yamaha and optimized for the Reign E+ chassis and Maestro suspension. The compact motor is now lighter (2.7kg) with increased torque output (up to 85Nm) and significantly reduced noise levels.
Sensor

RideControl Ergo 3, grip integrated

Six smart sensors precisely measure the power being applied to the pedals so the motor can provide just the right amount of assistance to create a natural, powerful riding experience. This helps optimize energy efficiency for both the rider and the battery system.
Display

RideControl GO, frame integrated LED displayANT+ Wireless display compatible

New top-tube integrated, multi-function on/off button can power on the E-bike quickly and easily. It can also change the motor settings.
Battery
EnergyPak Smart 625WhEnergyPak Plus range extender compatible
Sizes
S, M, L, XL
Colors
Good Grey
Frame

ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ’Boost’ 148x12mm, UDHTM derrailleur hanger

MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

ADJUSTABLE GEOMETRY
A flip chip lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low setting for faster, more open terrain, or the high setting for slower, tighter singletrack.
Fork
Fox 38 Float Performance Elite 29er, 170mm travel, GRIP2 VVC Damper, Boost 110×15 Kabolt floating axle, e-Bike optimized
Shock
Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned
Handlebar
Giant Contact Trail, 35x800mm
Grips
Giant Tactal Pro-E, single lock-on
Stem
Giant Contact SL 35
Seatpost

Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Saddle
Giant Romero SL Trail
Pedals
Flat pedal
Shifters
SRAM NX
Front Derailleur
MRP 1X HD2 custom co-molded chain guide
Rear Derailleur
Shimano Deore XT, 12-Speed, Shadow+
Brakes
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore XT BL-M8100, I-spec EV
Cassette
Shimano HG-M7100, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
Rims
Giant e-TR1 29″[F] 27.5″[R], Tubeless ready, 30mm inner width
Hubs
Giant e-TR1 [F] 110×15 [R] 148x12mm Thru-axle
Spokes
Giant e-TR1
Tires
[F]Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra
[R]Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
Extras
Tubeless kit (liquid, valves, levers, manual, tool)
Lighting
Optional:- Giant Recon series e-bike lights available and direct connectable

Lisätiedot

Paino 100 kg (kilogramma)
Merkki

Giant
